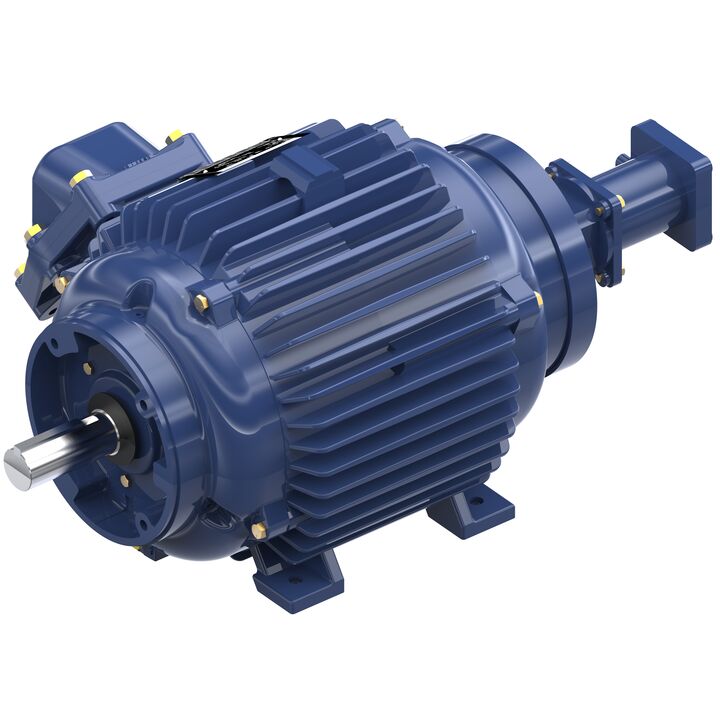

Explosion Proof Motor, 15 HP, 3 Ph, 60 Hz, 230/460 V, 1800 RPM, 256TC Frame, EPNV
Explosion Proof Motor, 15 HP, 3 Ph, 60 Hz, 230/460 V, 1800 RPM, 256TC Frame, EPNV
Part#: 256THEN17031
Catalog#: Y984
Model#: 256THEN17031AB
Weight: 432 lb
List Price: $19,832.00
Your Price: Login is Required
Key Features
- BEI H38 explosion proof encoder 1024 ppr, Class I Groups C & D,Class II Groups E, F, G included
- MAX GUARD® Class F insulation system
- Constant torque operation from 0 to base speed on vector drive
- Constant Horsepower operation up to twice base RPM
- Optimized for operation with IGBT inverter (NEMA Design A)
- F1 standard, NOT field reversible to F2, Meets temperature code T3B
- Suitable for Group C
Specifications
| Phase | Phase: 3 | Output HP | Output HP: 15 Hp |
| Output KW | Output KW: 11.2 kW | Voltage | Voltage: 230/460 V |
| Speed | Speed: 1770 rpm | Service Factor | Service Factor: 1 |
| Frame | Frame: 256TC | Enclosure | Enclosure: Explosion Proof Non Ventilated |
| Thermal Protection | Thermal Protection: Thermostat | Efficiency | Efficiency: 93 % |
| Ambient Temperature | Ambient Temperature: 40 °C | Frequency | Frequency: 60 Hz |
| Current | Current: 36.0/18.0 A | Power Factor | Power Factor: 85 |
| Duty | Duty: Continuous | Insulation Class | Insulation Class: F |
| Design Code | Design Code: INV | KVA Code | KVA Code: K |
| Drive End Bearing Size | Drive End Bearing Size: 6309 | Opp Drive End Bearing Size | Opp Drive End Bearing Size: 6309 |
| UL | UL: UL Listed And CSA Certified | CSA | CSA: Y |
| CE | CE: N | IP Code | IP Code: 54 |
| Number of Speeds | Number of Speeds: 1 | Hazardous Location | Hazardous Location: DIV 1 EXP PROOF CL I GR CD CL II GR FG T3C |
| Electrical Type | Electrical Type: Squirrel Cage Inverter Duty | Starting Method | Starting Method: Inverter Only |
| Poles | Poles: 4 | Rotation | Rotation: Reversible |
| Resistance Main | Resistance Main: .496 Ohms | Mounting | Mounting: Rigid Base |
| Motor Orientation | Motor Orientation: Horizontal | Drive End Bearing | Drive End Bearing: Ball |
| Opp Drive End Bearing | Opp Drive End Bearing: Ball | Frame Material | Frame Material: Cast Iron |
| Shaft Type | Shaft Type: T | Overall Length | Overall Length: 31.95 in |
| Frame Length | Frame Length: 12.25 in | Shaft Diameter | Shaft Diameter: 1.625 in |
| Shaft Extension | Shaft Extension: 3.75 in | Assembly/Box Mounting | Assembly/Box Mounting: F1 ONLY |
| Inverter Load | Inverter Load: CONSTANT 2000:1 |
| Service Factor | Service Factor: 1 | Frame Suffix | Frame Suffix: TC |
| Current | Current: 36.0/18.0 A | Synchronous RPM | Synchronous RPM: 1800 rpm |
| Frequency | Frequency: 60 Hz | Speed | Speed: 1770 rpm |
| Connection Drawing | Connection Drawing: A-EE7308AD | Outline Drawing | Outline Drawing: B-SS203518-1225 |
| Voltage | Voltage: 230/460 V | Output KW | Output KW: 11.2 kW |
| Output HP | Output HP: 15 Hp | Frame Size | Frame Size: 256 |
| Torque UOM | Torque UOM: LB-FT | Efficiency | Efficiency: 93 % |
| Packaged Length | Packaged Length: 37.88 IN | Weight | Weight: 432.00 LB |
| UPC | UPC: 722856025609 | Packaged Width | Packaged Width: 31.88 IN |
| HTC | HTC: 8501.52.4000 | Country of Origin | Country of Origin: United States of America |
| Packaged Height | Packaged Height: 18.53 IN |
| % of Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | 200% |
|---|---|---|---|---|---|---|---|---|
| % of Rated Load: Current (Amps) | 0%: 7.10 | 25%: 8.50 | 50%: 11.00 | 75%: 14.50 | 100%: 18.00 | 125%: 22.00 | 150%: 0.00 | 200%: 0.00 |
| % of Rated Load: Rated Output (KW) | 0%: 0.50 | 25%: 3.10 | 50%: 6.00 | 75%: 9.00 | 100%: 12.00 | 125%: 15.00 | 150%: 0.00 | 200%: 0.00 |
| % of Rated Load: Efficiency (%) | 0%: 0.0 | 25%: 88.5 | 50%: 91.7 | 75%: 92.4 | 100%: 93.0 | 125%: 92.4 | 150%: 0.0 | 200%: 0.0 |
| % of Rated Load: Power Factor (%) | 0%: 9.0 | 25%: 44.0 | 50%: 67.5 | 75%: 78.5 | 100%: 85.0 | 125%: 86.0 | 150%: 0.0 | 200%: 0.0 |
| % of Rated Load: Speed (RPM) | 0%: 1,800 | 25%: 1,792 | 50%: 1,785 | 75%: 1,776 | 100%: 1,770 | 125%: 1,758 | 150%: 0 | 200%: 0 |
| % of Rated Load: Temp. Rise @ FL | 0%: 0.0 | 25%: 0.0 | 50%: 0.0 | 75%: 0.0 | 100%: 80.0 | 125%: 0.0 | 150%: 0.0 | 200%: 0.0 |
| % of Rated Load: Torque (ft-lbs) | 0%: 0.00 | 25%: 11.00 | 50%: 22.00 | 75%: 33.50 | 100%: 44.50 | 125%: 56.00 | 150%: 0.00 | 200%: 0.00 |
| % of Rated Load: | 0%: | 25%: | 50%: | 75%: | 100%: | 125%: | 150%: | 200%: |
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
|---|---|---|---|---|---|---|---|---|
| Curvepoint: Locked-Rotor | Current (Amps): 160.00 | Current (%): 889.0 | Torque (ft-lbs): 95.00 | Torque (%): 213.0 | Speed (RPM): 0 | Rated Output (KW): | Power Factor (%): 36.0 | Rated Output (Hp): 15.00 |
| Curvepoint: Break-Down | Current (Amps): 105.00 | Current (%): 583.0 | Torque (ft-lbs): 182.00 | Torque (%): 409.0 | Speed (RPM): 1,555 | Rated Output (KW): | Power Factor (%): 69.5 | Rated Output (Hp): 15.00 |
