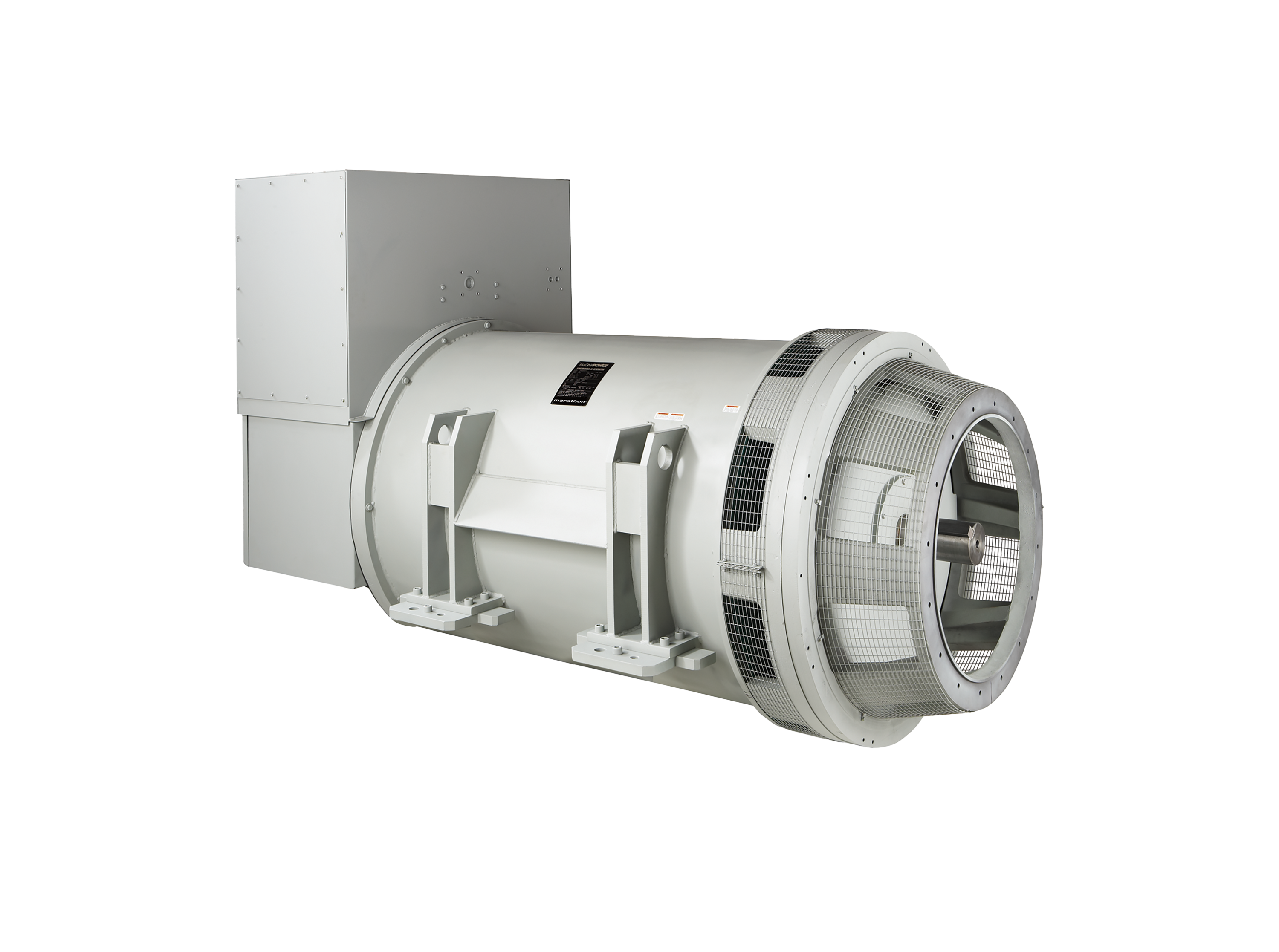

To ensure high mechanical and electrical integrity, the entire stator assembly is vacuum pressure impregnated with anhydride epoxy resin and coated with a tropical insulation for added environmental protection.

MagnaPower’s exciter comes standard with surge protectors, as well as rotating rectifiers rated for 1000 volts.

Standard features

• Single-piece lamination and amortisseur windings, rather than segmented laminations
• The copper field is wet-layer wound with thermo-setting epoxy for high mechanical and electrical integrity. An overcoat of tropical insulation provides added environmental protection.
• Special form-wound coils provide excellent voltage surge and corona protection (random wound coils are available for low voltage)
• Conduit box assemblies are optimized to the application. Lead entry or terminal connection requirements, and designed to accept various auxiliary devices such as current transformers all within a compact envelope.
• Class H insulation system
• Permanent Magnet Generator supplies the regulator with input power that is isolated from load disturbances
• 300% short circuit current for a minimum of 10 seconds during fault conditions
• Patented Digital Voltage Regulator, the DVR2400, provides .25% voltage regulation, three phase RMS sensing, and advanced operation and protection features
• Ball bearings (40,000 hour B-10 life)
• UL Recognized (600V max) per Standards UL 1004-1, -5; CSA Certified (13,800V max) per Standard C22.2 No. 100
• Custom designs available
