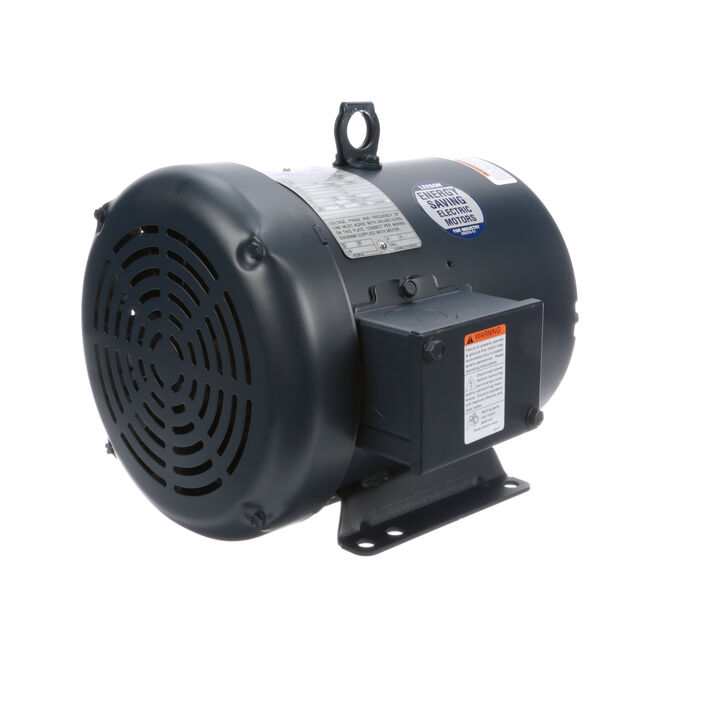

Fan and Blower Motor, 2 & 1 HP, 3 Ph, 60 & 60 Hz, 460 & 460 V, 1800 & 1800 RPM, 184T Frame, TEFC
Fan and Blower Motor, 2 & 1 HP, 3 Ph, 60 & 60 Hz, 460 & 460 V, 1800 & 1800 RPM, 184T Frame, TEFC
Part#: 131471.00
Catalog#: 131471.00
Model#: C184T48FB64C
Weight: 71 lb
List Price: $2,937.00
Your Price: Login is Required
Key Features
- Two-speed, single winding
- Three phase designs
- UL recognized component listing and CSA approved
Specifications
| Phase | Phase: 3 | Output HP | Output HP: 2 & 1 Hp |
| Output KW | Output KW: 1.5 & 0.75 kW | Voltage | Voltage: 460 & 460 V |
| Speed | Speed: 1740 & 860 rpm | Service Factor | Service Factor: 1.0 & 1.0 |
| Frame | Frame: 184T | Enclosure | Enclosure: Totally Enclosed Fan Cooled |
| Thermal Protection | Thermal Protection: No Protection | Efficiency | Efficiency: 80 & 64 % |
| Ambient Temperature | Ambient Temperature: 40 °C | Frequency | Frequency: 60 & 60 Hz |
| Current | Current: 2.9 & 2.9 A | Power Factor | Power Factor: 88.6 |
| Duty | Duty: Continuous | Insulation Class | Insulation Class: F |
| Design Code | Design Code: B | KVA Code | KVA Code: H |
| Drive End Bearing Size | Drive End Bearing Size: 6206 | Opp Drive End Bearing Size | Opp Drive End Bearing Size: 6205 |
| UL | UL: Recognized | CSA | CSA: Y |
| CE | CE: N | IP Code | IP Code: 43 |
| Number of Speeds | Number of Speeds: 1 |
| Electrical Type | Electrical Type: Squirrel Cage Induction Run | Starting Method | Starting Method: Across The Line |
| Poles | Poles: 4 | Rotation | Rotation: Reversible |
| Resistance Main | Resistance Main: 0 Ohms | Mounting | Mounting: Rigid Base |
| Motor Orientation | Motor Orientation: Horizontal | Drive End Bearing | Drive End Bearing: Ball |
| Opp Drive End Bearing | Opp Drive End Bearing: Ball | Frame Material | Frame Material: Rolled Steel |
| Shaft Type | Shaft Type: T | Overall Length | Overall Length: 13.96 in |
| Frame Length | Frame Length: 8.50 in | Shaft Diameter | Shaft Diameter: 1.125 in |
| Shaft Extension | Shaft Extension: 2.75 in | Assembly/Box Mounting | Assembly/Box Mounting: F1/F2 CAPABLE |
| Service Factor | Service Factor: 1 | Frame Suffix | Frame Suffix: T |
| Current | Current: 2.9 A | Synchronous RPM | Synchronous RPM: 1800 & 1800 rpm |
| Frequency | Frequency: 60 Hz | Speed | Speed: 1740 rpm |
| Connection Drawing | Connection Drawing: 005148.01 | Outline Drawing | Outline Drawing: 035465-850 |
| Voltage | Voltage: 460 V | Output KW | Output KW: 1.5 kW |
| Output HP | Output HP: 2 Hp | Frame Size | Frame Size: 184 |
| Torque UOM | Torque UOM: LB-FT | Efficiency | Efficiency: 80 % |
| Packaged Length | Packaged Length: 18.31 IN | Weight | Weight: 71.00 LB |
| UPC | UPC: 691720017401 | Packaged Width | Packaged Width: 13.50 IN |
| Country of Origin | Country of Origin: Mexico | Packaged Height | Packaged Height: 13.44 IN |
| % of Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | 175% | 200% |
|---|---|---|---|---|---|---|---|---|---|
| % of Rated Load: Current (Amps) | 0%: 1.18 | 25%: 1.30 | 50%: 1.63 | 75%: 2.12 | 100%: 2.61 | 125%: 3.22 | 150%: 3.85 | 175%: 4.67 | 200%: 5.49 |
| % of Rated Load: Rated Output (KW) | 0%: 0.20 | 25%: 0.60 | 50%: 0.98 | 75%: 1.43 | 100%: 1.84 | 125%: 2.33 | 150%: 2.83 | 175%: 3.43 | 200%: 4.02 |
| % of Rated Load: Efficiency (%) | 0%: 0.0 | 25%: 63.6 | 50%: 77.0 | 75%: 78.3 | 100%: 80.0 | 125%: 77.9 | 150%: 76.0 | 175%: 71.6 | 200%: 68.0 |
| % of Rated Load: Power Factor (%) | 0%: 21.7 | 25%: 57.5 | 50%: 75.2 | 75%: 84.4 | 100%: 88.6 | 125%: 90.9 | 150%: 92.2 | 175%: 92.1 | 200%: 91.9 |
| % of Rated Load: Speed (RPM) | 0%: 1,795 | 25%: 1,780 | 50%: 1,765 | 75%: 1,746 | 100%: 1,729 | 125%: 1,705 | 150%: 1,681 | 175%: 1,644 | 200%: 1,605 |
| % of Rated Load: Temp. Rise @ FL | 0%: 0.0 | 25%: 0.0 | 50%: 0.0 | 75%: 0.0 | 100%: 0.0 | 125%: 0.0 | 150%: 0.0 | 175%: 0.0 | 200%: 0.0 |
| % of Rated Load: Torque (ft-lbs) | 0%: 0.00 | 25%: 1.50 | 50%: 3.00 | 75%: 4.50 | 100%: 6.00 | 125%: 7.50 | 150%: 9.00 | 175%: 10.50 | 200%: 12.00 |
| % of Rated Load: | 0%: | 25%: | 50%: | 75%: | 100%: | 125%: | 150%: | 175%: | 200%: |
| % of Rated Load: | 0%: | 25%: | 50%: | 75%: | 100%: | 125%: | 150%: | 175%: | 200%: |
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
|---|---|---|---|---|---|---|---|---|
| Curvepoint: Pull-Up | Current (Amps): 0.00 | Current (%): 0.0 | Torque (ft-lbs): 12.00 | Torque (%): 200.0 | Speed (RPM): 0 | Rated Output (KW): 0.00 | Power Factor (%): 0.0 | Rated Output (Hp): 2.00 |
| Curvepoint: Full Load | Current (Amps): 2.90 | Current (%): 0.0 | Torque (ft-lbs): 6.00 | Torque (%): 100.0 | Speed (RPM): 0 | Rated Output (KW): 0.00 | Power Factor (%): 0.0 | Rated Output (Hp): 2.00 |
| Curvepoint: Locked-Rotor | Current (Amps): 17.00 | Current (%): 0.0 | Torque (ft-lbs): 15.06 | Torque (%): 251.0 | Speed (RPM): 0 | Rated Output (KW): 0.00 | Power Factor (%): 0.0 | Rated Output (Hp): 2.00 |
| Curvepoint: Break-Down | Current (Amps): 0.00 | Current (%): 0.0 | Torque (ft-lbs): 16.50 | Torque (%): 275.0 | Speed (RPM): 0 | Rated Output (KW): 0.00 | Power Factor (%): 0.0 | Rated Output (Hp): 2.00 |
Efficiency
| Country | Complies with standards |
|---|---|
| Country: United States | Complies with standards: cancel |
| Country: Canada | Complies with standards: cancel |
| Country: Mexico | Complies with standards: cancel |
| Country: Australia | Complies with standards: check_circle |
| Country: Brazil | Complies with standards: cancel |
| Country: Chile | Complies with standards: cancel |
| Country: China | Complies with standards: check_circle |
| Country: Europe | Complies with standards: check_circle |
| Country: Japan | Complies with standards: check_circle |
| Country: New Zealand | Complies with standards: check_circle |
| Country: Saudi Arabia | Complies with standards: cancel |
| Country: South Korea | Complies with standards: cancel |
